Place of Origin : China
Brand Name : JIWEI
Model Number : 8M33
Price : Negotiable
Certification : CE
MOQ : 1
Payment Terms : T/T
Rated Voltage : 400V , 230V,380V,480v
Rated Current : 1300A-1500A
Speed : 1500RPM, 1800RPM
Frequency : 50/60hz
Starting system : 24V DC Electric Start, 12V DC Electric Start
Type : Container Type, Open Frame, Mobile Type
Cooling System Type : Water Cooling System
Warranty : Other
Rated power : 640kw 800kva 720kw 900kva 800kw 1000kva
Engine : 8M33
Product name : 640kw 800kva 720kw 900kva 800kw 1000kva Weichai diesel generator set
Color : customizable
| Land Based Genset-JW-WP970 | |||||
| Gen-set specifications | |||||
| Model | JW-WP970 | ||||
| Standby Rating kVAkWe | 1100/880 | ||||
| Prime Rating kVAkWe | 1000/800 | ||||
| Voltage V | 400/230 | ||||
| Frequency Hz | 50 | ||||
| Power Factor | 0.8(lagging) | ||||
| No.of Phases | 3 | ||||
| Fuel consumption@25%/50%/75%(Lh)75%(Lh) | 67.8/112.0/158.4 | ||||
| Fuel consumption@100%/110%(Lh) | 213.6/232.3 | ||||
| Sound@1m (dB · (A)) | Open≤104;Silence≤95 | ||||
| Ambient temp(C) | -10~45 | ||||
| Gen-set regulation class | ISO8528-5 G2 | ||||
| Steady-state voltage deviation | ≤±2.5% | ||||
| Translent voltage deviation(100%sudden power decrease/increase) | ≤+25%;≤-20% | ||||
| Steady-state frequency band | ≤1.5% | ||||
| Transient frequency deviation from rated frequency (100%sudden power decrease/increase) | ≤+12%;≤10% | ||||
| Standard Features | |||||
| ◆ ECU | ◆DC24 Electric starter | JWWHC9320CAN | |||
| ◆Closed water-cooled | ◆ IP23 | type insulation | |||
| ◆Air filter | ◆ Muffler | ◆Circuit Breaker | |||
| ◆Startingbatteries | ◆with connective wires | ◆ Radiator | |||
| ◆Oil Drain Valve | ◆Forklift Groove | Shock Absorber | |||
| ◆Color | Weichai blue(B,F)/beige canopy and black chassis(L)/white(C) | ||||
| ◆Packaging | Wound film packing | ◆PMG | |||
| Options | |||||
| O Line Voltage380V/415V | O LineVoltage 440V/480V | OVoltage 6.3kV/10.5kV/13.8kV | |||
| O Single Voltage220V/230V | ◇Automatic Transfer Switch | OAutomatic Paralel system | |||
| ◇Engine Heater(water) | ◇Engine Heater(air inlet) | OAlternator heater | |||
| External fuel tank(1000L/1500L) | OAREP | ||||
| Typical Enclosed Genset Dimensions | ||||||
| Genset Model | Rated Power (kW) | Length A(mm) | Width B(mm) | Height C(mm) | Wet Weight (kg) | Standard Fuel tank Capacity (L) |
| JW-WP970/B73 | 800 | 4030 | 1871 | 2131 | 6900 | / |
| JW-WP970/C73 | 800 | 20#标柜 | 600 | |||
| *:Include coolantand oil. | ||||||
We have cooperation with worldwide famous brands. For more specification,please contact us.





Our OEM Partners
are from different brands. With our customized solutions consistently delivering satisfaction ,we have won an esteemed reputation.
1.Q: What is your MOQ of this item?
A:1 Sets.
2.Q: What is the lead time?
A:7 working days after received the 30%T/T deposit.
3.Q: Is it all right to make customer's own brand name?
A:We can be your OEM manufacture with your authorization of brand.
4.Q: Where is your Loading Port?
A:Shanghai or others.
5.Q: What are your payment terms?
A:30% TT as deposit,70% TT before Shipment.
6.Q: What is your company's available production capacity?
A:100 Sets per month.
7.Q:What's the warranty time of diesel generators?
A:12 months or 1000 working hours, whichever comes first.
First, environmental protection and fuel saving: The advantages of gasoline generator include: optimized performance, flexible control, reduce NOx emission, high precision control, low vibration, low noise, low maintenance cost;
Second,Delivery Guarantee: 1.fast delivery time: 1-5 days after receiving the deposit, except for special models; 2.Jiwei Company has been established for 20 years, with rich pre-sales and after-sales service capabilities, strong supply capabilities, stable supplier resources and rich logistics resources;
Third, strict quality inspection and testing procedures: 1.each generator set has to go through a comprehensive test program, including 50% load, 75% load, 100% load, 110% load and all control and alarm, safety shutdown function inspection and certification.
Fourth, service guarantee 1.provide free technical support, drawing design; 2.warranty time :2 years or 2000 hours to the first arrival (delivery starts to calculate the time); 3.service response time: within 30 minutes (telephone response); 4.spare parts supply: common repair, maintenance spare parts supply (shipped in China); 5.warranty address: global warranty; Fifth,Customized Services: can be more customized products and LOGO according to your needs;
Sixth,Confidentiality we can sign quality assurance and confidentiality agreements with you, so that our cooperation is more stable;
|
|

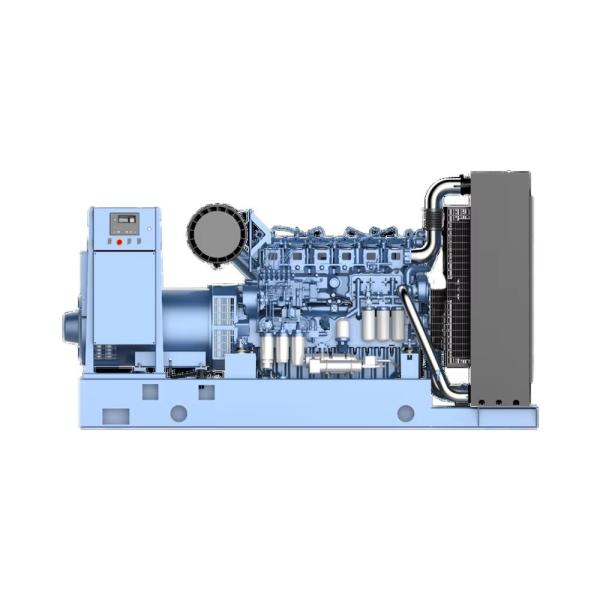

8M33 640kw 800kva WEICHAI Diesel Generator 720kw 900kva Diesel Inverter Generator Images |
